Al Hoty Stanger Mobile Lab


Al-Hoty Stanger Mobile Lab is a custom Mobile Laboratory Trailers built by Al Hoty Company Limited and Al Hoty AutoCare Workshop. This mobile lab is a fully equipped material testing lab.
I worked with high managements, lab technicians, and the workshop technicians in the pre-building stages, during the building stages, and post building stages.
I served as a project super visor and designer.
After discussing the details of the lab supervisor and the company high management, I came up with the first 2D plan and 3D imaginary models using Autodesk Revit and Cenima 4D


After a number of meetings and discussions, I came up with the final Design of the Mobile Lab which was applied in real life.


I also designed technical details in as 2D and 3D models and provided it to the technical team. This includes designing the curing tanks and special basement ( mount) for a compression machine inside the trailer.
I also provided the team with counting lists of the design building needs.

The process of building Al-Hoty Stanger Mobile Lab took few months. I shared many notes and developing ideas with the project team

I also designed the internal and the exterior stickers of the mobile lab
The plan was to fully cover the trailer with 3M Printed sticker; so I designed the below design:

However, the management preferred applying a simple design on that time while keeping this design to be implemented on next trailer project. For that reason I made the following design.


Finally, I wrote a complete user manual for the lab. The file has more than 40 pages of technical drawings, photos, and instructions about the Mobile Lab operations.
The manual also includes the electrical maps and all the details of the mobile lab. I did my best to ensure making a comprehensive source about this project.

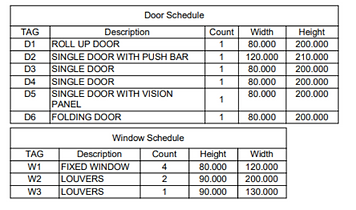

below some random pages of the manual:
